Description

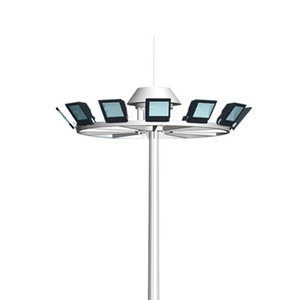

We provide highly reliable industrial LED lighting products for harsh environments, and create specialized design to enhance the high light efficiency and industrial grade stability of the products. Thunder High Bay Light is specially designed for the harsh environment application of Port, Mine site etc.
Standard: IEC60598-1\IEC600682\
IEC60529\IEC62262\EN55015
Certificate: CE.
Features
Compact design, super high efficiency LED chips
Module design, flexible combination.
High efficient heat dissipation structure design.
Wide voltage range available for global requirements
Anti-corrosion, dust and shock resistance and waterproof
180°adjustable bracket for easy installation
Series and parallel electric circuit design.
Specification
| Ref. | Rated | ||||
| 100W | 150W | 200W | 250W | 300W | |
| Chip PCS | 50pcs*2 （Set） | 50pcs*3 （Set） | 50pcs*4 （Set） | 50pcs*5 （Set） | 50pcs*6 （Set） |
| Rated Power | 100W | 150W | 200W | 250W | 300W |
| Rated Voltage | 220V | ||||
| Luminous | 140lm/W | ||||
| Frequency | 65Hz | ||||
| Display Index | RA＞80 | ||||
| Color Temperature | 2700-6500K | ||||
| Working Temperature | -25℃~+75℃ | ||||
| Lamp Material | Made of Aluminum alloy, high protection tempered glass，and high protective lens. dustproof, shickproof and waterproof | ||||
| Size | 160*270*240 mm | 285*270*240 mm | 410*270*240 mm | 540*270*240 mm | 670*270*240 mm |
| Chip Brand | Philips 3030 | ||||
| Chip Junction Temperature | ＜110℃ | ||||
| Power Source | Battery of Mingwei | ||||
| Power Efficiency | ≥94% | ||||
| Total Harmonic Distortion (THD) | ≤10% | ||||
| Color | Black | ||||
| IP Rate | IP65 | ||||
| Max Angle | 60° | ||||
| Life Span | ≥50000H | ||||
| Lens Transmittance | ≥94% | ||||
| Working Humidity | 10%~90%RH | ||||
| Weight | 3.9KG | 4.5KG | 5KG | 5.6KG | 6.2KG |
Application
