Description

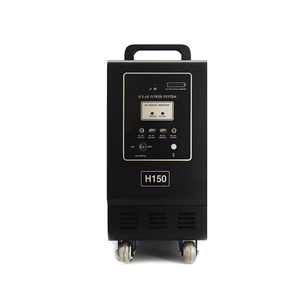

HOMMIIEE DC solar home kits is an all-in-one designed independent solar energy battery backup system, configuring with DC12V and USB5V output terminals, mainly used to supply power for consumer low power consumption products, such as TV, flashing light, outdoor emergency lighting, home lighting, DC fans, radio, portable refrigerator, laptop, mobile phone charging etc.
Specification
Components | |
Solar Panel | mono crystalline |
Battery | LiFePO4 |
Bulb | 2pcs LED |
Line | 5m |
Base | |
High Voltage Protection | >14.4V |
Low Voltage Protection | <8V |
Battery Cycle-life | ≥4000 cycles to 80% |
Battery Shelf-life | Charge every 3-6 Months |
Charge Method | Solar, AC outlet |
Working Temperature | -20℃~+45℃ |
Management System | Over charging protection |
Discharging protection | |
Over Current protection | |
Short circuit protection | |
Dimension | 250*130*162mm |
Weight | 3.0kg/5.0kg |
Optional Accessory | |
Charger | 2A/6 A |
Charger Line | For mobile |
Bulb | 12V3W |
DC fan | 12V |
Features
LFP battery: long service life with more than 10 years.
Multifunctional use: DC12V output and USB5V output.
Easy to carry: light weight and small size.
Intelligent battery management system and fault display.
Front View Of HM100 In front, we can see: 1. Power Indicator 2. SOLAR/LOAD indicator 3. 2pcs LED light ports 4. 2pcs USB ports 5. ON/OFF 6. OEM for Model and Logo is accepted |
Back View Of HM100
Here can see: 1. DC switch 2. DC outport*1set 3. Charger (solar/wall socket ) |
QUALITY GUARANTEED Safety by BMS Design Accept any panel from small to large power. High and low temperature resistence : -20℃~+45℃ -45℃ ~+55℃ is accepted as special offer) Self-Protection of large power device misuse) | LONG SERVICE LIFE High quality LiFePO4 battery High energy storage cells are adopted for less connection in parallel-one of the key fact that Licloud requires less aftersale service.
>4000times cycle ensures 10+ years service. |
CHARGING TIME | ||||||
HM100 | HM400 | HM150 | HM300 | HM1100 | HM1300 | |
LAPTOP | 2 hrs | 7 hrs | 7 hrs | 13 hrs | 18 hrs | 22 hrs |
CAMERA | 5 hrs | 18 hrs | 18 hrs | 34 hrs | 48 hrs | 57 hrs |
CAMERA | 2 hrs | 7 hrs | 7 hrs | 13 hrs | 18 hrs | 21 hrs |
IPHONE | 7 hrs | 26 hrs | 26 hrs | 51 hrs | 72 hrs | 85 hrs |
IPAD | 2 hrs | 8 hrs | 8 hrs | 15 hrs | 21 hrs | 25 hrs |
PSP | 4 hrs | 15 hrs | 15 hrs | 28 hrs | 40 hrs | 47 hrs |
LED FLOOD LIGHT | 8 hrs | 31 hrs | 31 hrs | 60 hrs | 84 hrs | 99 hrs |
SPEAKER | 7 hrs | 28 hrs | 28 hrs | 53 hrs | 75 hrs | 88 hrs |
LED BULB(3W) | 84 hrs | 15 Days | 15 Days | 1 Month | 1.5 Months | 2 Months |
TV(30 INCH 60W) | Not recommended | Not recommended | 6 hrs | 13 hrs | 18 hrs | 21 hrs |
COOKER(2L,300W) | Not recommended | Not recommended | Not recommended | Not recommended | Not recommended | 4 hrs |
Application
